Turbidity—the measure of relative clarity of a liquid—serves as a critical quality indicator across numerous industries. While municipal water systems typically monitor turbidity primarily for safety and regulatory compliance, manufacturers of bottled water and ultra-pure water applications face more stringent clarity requirements driven by both aesthetic considerations and functional needs.
The difference between municipal drinking water and commercial bottled water extends beyond their sources and regulatory frameworks. Municipal systems follow EPA guidelines that generally permit turbidity up to 1.0 NTU (Nephelometric Turbidity Units), with many facilities aiming to maintain levels below 0.3 NTU. Conversely, premium bottled water producers and high-purity water applications often target significantly lower turbidity values—frequently below 0.1 NTU.
Industries Pushing the Boundaries of Water Clarity
Several industries now require water with exceptionally low turbidity measurements:
- Bottled Water Production: Consumer expectations for crystal-clear bottled water have pushed manufacturers to implement advanced filtration technologies, with premium brands typically maintaining turbidity in the range 0.03 – 0.04 NTU.
- Pharmaceutical Manufacturing: USP (United States Pharmacopeia) and EP (European Pharmacopoeia) standards for purified water and Water for Injection (WFI) necessitate turbidity levels below 0.05 NTU.
- Semiconductor Fabrication: The production of microchips requires ultra-pure water with virtually undetectable turbidity levels, as even microscopic particles can cause critical defects.
- Laboratory Applications: Research facilities require water with minimal particulate matter for reliable experimental results, usually maintaining turbidity below 0.05 NTU.
Advanced Filtration: Technologies Behind Ultra-Pure Water
The pursuit of lower turbidity has driven significant advances in water treatment technology over the past decade. Ultrafiltration (UF) systems employ membranes with pore sizes approximately 0.01 microns, effectively reducing turbidity to around 0.05 NTU by physically blocking particles larger than the membrane pores.
Multi-Stage Approaches for Premium Water Production
For applications requiring even greater clarity, Reverse Osmosis (RO) technology forces water through semi-permeable membranes under pressure, typically achieving turbidity levels below 0.1 NTU while simultaneously removing dissolved solids that ultrafiltration alone cannot address.
Many premium water producers implement combined UF/RO systems—integrated multi-stage filtration approaches that consistently deliver water with turbidity levels approaching 0.01 NTU. These systems often incorporate deionization as a final polishing step, further reducing dissolved solids that might otherwise contribute to turbidity measurements.
These advanced filtration technologies represent significant investments for manufacturers, making precise turbidity measurement essential for validating system performance and ensuring product quality. The ability to detect minute changes in turbidity provides critical insight into filtration efficiency and early warning of potential system issues.
Measurement Challenges in Low-Turbidity Applications
As filtration technologies advance, the limitations of traditional turbidity measurement become apparent. Four primary challenges emerge when measuring ultra-low turbidity:
- Resolution Limitations: Many standard turbidimeters designed for municipal water applications lack sufficient resolution below 0.1 NTU.
- Calibration Complexity: Accurate calibration becomes increasingly difficult at extremely low turbidity levels, with ambient conditions and sample handling introducing significant variables.
- Cost vs. Performance Balance: Laboratory-grade turbidimeters capable of measuring ultra-low turbidity often come with prohibitive costs for continuous online monitoring.
- Maintenance Requirements: High-precision instruments traditionally require frequent calibration and careful maintenance to maintain accuracy in low-turbidity applications.
Nephelometric Measurement Technology
The most widely accepted method for turbidity measurement employs nephelometry—specifically, the measurement of 90° scattered light according to ISO 7027 and DIN EN 27027 standards. This technique involves:
- Directing a light beam (typically near-infrared at 850nm) through a water sample
- Measuring the light scattered at a 90° angle by particles suspended in the water
- Comparing this scattered light intensity to calibrated standards
This approach provides several advantages over alternative methods:
- Reduced interference from dissolved color compounds
- Better linearity across measurement ranges
- Higher sensitivity to small particles
- Standardized methodology recognized across industries

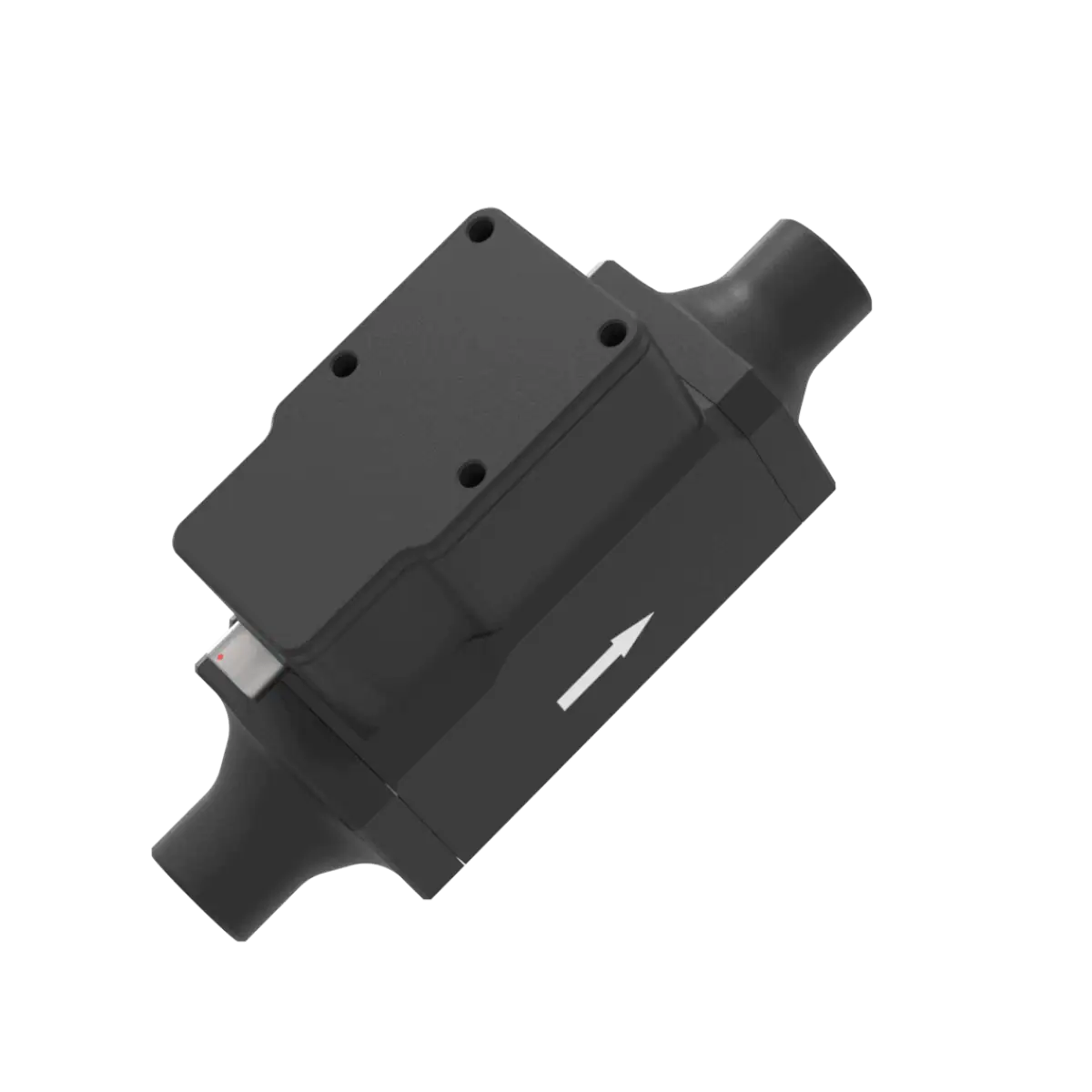

The EXpure 191: Precision Measurement for High-Purity Applications
For manufacturers requiring precise real-time turbidity measurement in high-purity water applications, the EXpure 191 turbidity sensor offers a solution that addresses many traditional challenges. Designed specifically for monitoring processes with very low turbidity levels, the EXpure 191 provides:
- Exceptional Resolution: In testing, the EXpure 191 has demonstrated resolution capabilities down to 0.01 NTU, enabling measurement of extremely small changes in water clarity.
- Measurement Range: Optimized for 0-10 NTU range, it covers the typical operating range for bottled water and most high-purity applications.
- Design Advantages: The 90° scattered light sensor uses an LED light source that ensures measurement stability while extending maintenance intervals compared to traditional lamp-based instruments.
- Simplified Operation: Unlike many high-precision turbidimeters, the EXpure 191 requires no routine calibration by the user, significantly reducing operational complexity.
- Integration Capability: With both Modbus RTU and optional 4-20mA outputs, the sensor integrates easily with existing control systems.
- Cost Efficiency: The compact design and simplified operation translate to acquisition costs significantly lower than adapted laboratory-grade alternatives with comparable precision.
The sensor’s sapphire windows and stainless steel construction ensure durability in continuous operation, while the flow-through measurement cell design enables direct integration into water production lines.
Practical Applications and Performance
Quality Control in Bottled Water Production
In practical deployment, the EXpure 191 has demonstrated particular value across diverse water quality applications. Bottled water producers have implemented the sensor for monitoring filtration system performance and final product quality, with the high-resolution measurements providing early detection of filter breakthrough before it affects product appearance.
Pharmaceutical Compliance and Cost Reduction
The pharmaceutical industry presents another significant application area, where the EXpure 191 provides continuous validation of water purification system performance without the expense of laboratory sampling. This real-time monitoring capability helps maintain compliance with stringent quality standards while reducing operational costs.
Commercial Recreation Water Monitoring
Commercial swimming pool operators have also adopted the technology, particularly in high-end facilities where exceptional water clarity directly impacts customer experience. The sensor’s ability to detect subtle changes in water quality helps maintain optimal filtration performance and chemical balance.
Equipment Validation and Certification
Beyond ongoing monitoring, the EXpure 191 plays a crucial role in process validation, supporting qualification of new filtration equipment by documenting performance metrics with high resolution. This capability proves especially valuable during system commissioning and regulatory certification procedures.
Implementation Considerations
When implementing turbidity monitoring for high-purity water applications, several factors should be considered:
- Flow Rate Stability: The EXpure 191 performs optimally with consistent flow rates between 30-80 l/h through the measurement cell.
- Bubble Elimination: Air bubbles can significantly impact turbidity readings. The optional bubble trap accessory should be considered for applications prone to entrained air.
- Installation Position: Vertical installation in rising pipes ensures optimal performance by preventing air accumulation in the line.
- Chemical Compatibility: While designed primarily for water applications, the PE-HD and stainless steel construction provides compatibility with most water treatment chemicals.
Precision Without Complexity and Cost
As industries continue to demand higher water purity levels, the importance of precise, reliable turbidity measurement increases. The EXpure 191 represents a pragmatic solution for manufacturers seeking laboratory-grade precision in a continuous online instrument without the associated complexity and cost. By providing resolution down to 0.01 NTU with minimal maintenance requirements, it enables more rigorous quality control and process optimization in high-purity water applications.
For organizations looking to upgrade their turbidity monitoring capabilities or implement new high-purity water systems, the EXpure 191 offers an effective balance of performance, reliability, and value.
