MICROFLEX-D PROVIDES EXCELLENT VALUE WITH HIGH QUALITY PERFORMANCE AT LOW COST

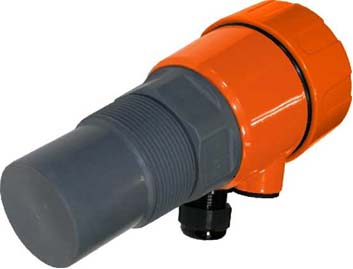

The Microflex-D is a compact, non-intrusive, loop-powered ultrasonic level transmitter for continuous measurement of liquids. With high chemical compatibility and a measuring range of either 8 or 12 meters, it is ideal for level applications in a wide range of industries. With simple, intuitive operation and easy and flexible mounting, you can be up and running quickly and confidently.
KEY FEATURES OF THE MICROFLEX-D LEVEL SENSOR
- Two-wire 4-20 mA with HART connectivity
- Simple programming via built-in LCD display
- Range up to 12 meters (40 ft)
- Advanced echo processing ensures spurious signals from stirrers etc. are ignored
- 3 Modes of measurement – distance, % level and volume (volume linearization with 32-point table)
- Non-contact measurement
- Low overall cost of ownership
- Ingress protection class IP67, Type 4
- Adaptive sensitivity control
- Automatic temperature compensation
- Chemical-resistant PVDF transducer
- Simple installation
MICROFLEX-D
MICROFLEX-D
| Overall Range | 8m (26.25 ft) |
| Display Modes | Distance, Level, % Level, Volume |
| Volume Features | Pre-set Common Vessel Shapes with 32 Point Programmable Linearization Table (requires PC connection running downloadable Vision System II software) |
| Operating Voltage | 7 - 28Vdc |
| Power Consumption | 500mW @ 24VDC |
| Output | 4-20mA Output with HART Communications |
| Frequency | 50 KHz |
| Resolution | 1 mm (0.04”) |
| Electronic Accuracy | ± 0.5% of maximum range |
| Operating Temp. Range | -40°C to 60°C (-40°F to 140°F) |
| Operating Pressure Range | -0.5 to 3 barg (-7 to 44 psig) |
| Automatic Temp. Comp. | Yes |
| Beam Angle | 7° |
| Wetted Materials | Transducer: PVDF |
| HMI | 4-line graphic display with 4 pushbuttons |
| Enclosure Rating | IP67 / Type 4 |
| Cable Entries | 2 x M20 x 1.5 |
| Mounting | 2” NPT or BSPT Thread |
| Weight | 1kg (2.2 pounds) |
Typical Applications: River level, Pump stations, Diesel tanks, Wet wells, Water towers, Slurry levels, Inlet screens, Dams, Tanks, Basin levels, Tide levels, Sumps, Ink levels, Chemical storage, more…
MICROFLEX-D ER
MICROFLEX-D ER
| Overall Range | 12m (39.5 ft) |
| Display Modes | Distance, Level, % Level, Volume |
| Volume Features | Pre-set Common Vessel Shapes with 32 Point Programmable Linearization Table (requires PC connection running downloadable Vision System II software) |
| Operating Voltage | 7 - 28Vdc |
| Power Consumption | 500mW @ 24VDC |
| Output | 4-20mA Output with HART Communications |
| Frequency | 50 KHz |
| Resolution | 1 mm (0.04”) |
| Electronic Accuracy | ± 0.25% of maximum range |
| Operating Temp. Range | -40°C to 60°C (-40°F to 140°F) |
| Operating Pressure Range | -0.5 to 3 barg (-7 to 44 psig) |
| Automatic Temp. Comp. | Yes |
| Beam Angle | 7° |
| Wetted Materials | Transducer: PVDF |
| HMI | 4-line graphic display with 4 pushbuttons |
| Enclosure Rating | IP67 / Type 4 |
| Cable Entries | 2 x M20 x 1.5 |
| Mounting | 2” NPT or BSPT Thread |
| Weight | 1kg (2.2 pounds) |
Typical Applications: River level, Pump stations, Diesel tanks, Wet wells, Water towers, Slurry levels, Inlet screens, Dams, Tanks, Basin levels, Tide levels, Sumps, Ink levels, Chemical storage, more…
